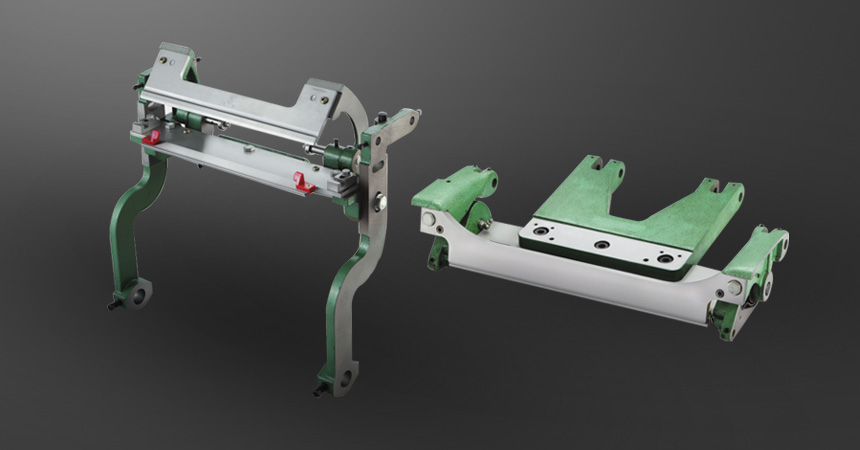

Nipper Assembly for Cotton Combing Machine
A201/205 Series Nipper Assembly for Cotton Combing Machine
|
Model |
No. |
Width mm | The lower lip axis before the ridge to the height mm | Effective width of panel |
|
QJ-A201 |
A201-2300 | 404 | 102.5 | 288 |
| JF505-00 |
Note
1、Applicable model：A201A/B/C/D/E,SFA252.
|
Model |
No. |
Width mm | The lower lip axis before the ridge to the height mm | Effective width of panel |
|
QJ-FA251 |
JF506-00 | 416 | 253.5 | 320 |
| JF506-00 | 416 | |||
| JF506-00 | 416 | |||
| JF506-00 | 416 | 253.35 |
Note
1、Applicable model：A251A/B.
|
Model |
No. |
Width mm |
Under the clamp ridge to the height of the axis of lips mm | Height of lower jaw lip to lower axle bore mm | Upper clamp lip top to lower seat clamping hole axis height mm | Effective width of clamp plate |
|
QJ-PX2 |
JF503-00 | 464 | 78.5 | 7.15 | 300 | |
| QJ-CJ60 | JF504CJ-2400 | 468 | 76.6 | 180 | 10.7 | 305 |
| QJ-CM500 | JF508-00 | 479 | 10 | 318 |
Note
1、Applicable mode：PX2,CJ40/60/66,CM500/600.
