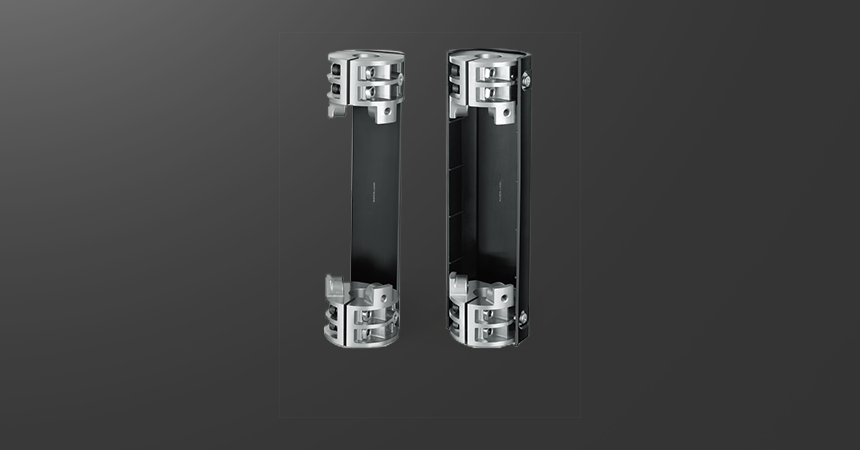

Circular Comb for Cotton Combing Machine
Series of cylinder shell of cotton combing series
|
Model |
No. |
O.D |
length |
Equip hole position |
Number of 1 cars |
Applicable model |
|
JZX-4(5)-E |
JF165-00d |
Φ85 |
325 |
210×120° |
7 |
The installation holes are same at home and abroad |
| JF165-00b |
210×120° |
1 | ||||
| JF165B-00a |
210×120°/137° |
7 | ||||
| JF165B-00b |
210×120°/137° |
1 |
Installation holes are the same at home and abroad, all different |
注
1.Top comb can be equipped with two kinds of pin barse press-fit type and inset type.
2.Pin bars are easy to install and replace.If pin bars are partially damaged,it can be partially replaced.
3.Low repair cost.
4.Jinfeng provides different density pin bars based on customer' need and fiber types.
